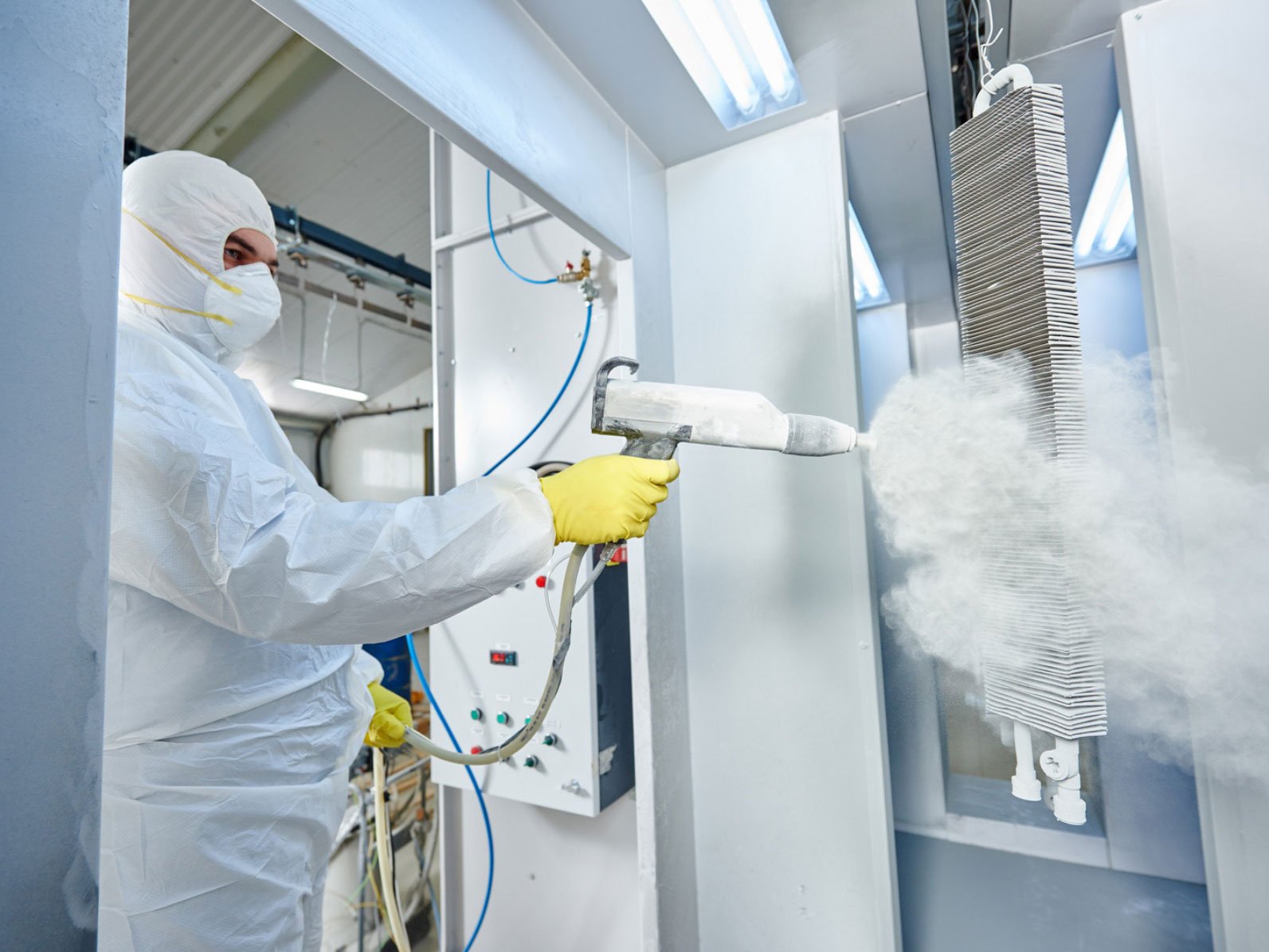

In the world of powder coating, electrostatic powder coating has become one of the most commonly used methods. It uses high-voltage electrostatics, with voltage levels ranging from 30 to 100 kV, to create an efficient and consistent coating. However, with the power of high voltage comes the need for strict safety precautions.
While the current used in these systems is relatively low—typically around 0.7 mA, which is below the threshold generally considered harmful for the human body—there are still risks. Some operators may be particularly sensitive to static discharges, which can cause discomfort or even minor shocks, leading to potential accidents or secondary injuries.
To ensure safe operations, operators must follow specific protocols when working with high-voltage electrostatic equipment in powder coating. This article outlines essential safety practices to minimize risks associated with high-voltage static in powder coating.
Safety Risks Associated with High-Voltage Electrostatic Powder Coating
Voltage and Current Specifications
Electrostatic powder coating systems often operate at high voltages to achieve the best adhesion between the powder particles and the substrate. Although these systems use low current (around 0.7 mA), high-voltage settings, often necessary for an efficient coating, can present hazards to operators if proper precautions aren’t taken.
Sensitivity to Static Discharge
Individual sensitivity to static varies, with some people experiencing noticeable discomfort even at low levels. This sensitivity can lead to reactions that could result in secondary accidents. Additionally, any unexpected sensation or small shock could lead to a sudden reaction that poses risks in a high-intensity work environment.
Key Safety Measures in High-Voltage Electrostatic Powder Coating
1. Selecting the Right Equipment
- Built-in Multiplier for Spray Guns: It’s essential to choose spray guns where the high-voltage generator is integrated into the gun itself rather than externally connected by cables. This design minimizes the length of exposed high-voltage cables, reducing the chances of leakage or accidental discharges, which can lead to shocks or sparks.
- Minimizing External High-Voltage Cables: When using systems with external high-voltage cables, ensure the cables are well-insulated, checked regularly for wear, and positioned away from high-traffic areas. Loose or faulty cables can lead to electric arcs, posing risks to personnel and equipment.
2. Controlling Voltage and Current Settings
- Limiting Voltage to Safe Levels: The electrostatic systems should ideally operate at voltages below 9 kV to reduce the likelihood of static-related discomfort or sensitivity issues for operators. Although 9 kV is sufficient for efficient powder application, lower voltage settings can create a safer work environment, especially for sensitive individuals.
- Current Limitation: The short-circuit current should not exceed 0.7 mA to avoid any potential injury. This precaution ensures that even accidental contact with high-voltage parts will not deliver a harmful electric shock.
3. Discharging Residual Static Charges
- Grounding the Spray Gun: After each use, operators should touch the spray gun to a grounded conductor. This practice helps eliminate residual static charges that can linger on the gun, preventing static buildup that could lead to shocks when the gun is handled again.
- Grounding Operators: To prevent the buildup of static charges on the operator, ensure that they are not insulated from the ground. This can be achieved by wearing conductive footwear and standing on grounded surfaces, allowing any static electricity on their body to dissipate safely.
4. Maintaining Safe Distances and Preventing Short Circuits
- Keeping a Safe Distance: Operators should maintain a distance of at least 10 cm between the spray gun and the substrate being coated. This separation reduces the risk of accidental short circuits that may occur if the gun is brought too close to the workpiece.
- Special Precautions for Metallic Powders: When using metallic powders, such as aluminum-based powders, be particularly cautious about short circuits. The risk of sparks is higher due to the conductive nature of metallic particles, and any spark could ignite the powder, leading to a fire or explosion. Always maintain a safe spray distance and avoid any buildup of metallic dust in the spray booth.
Additional Guidelines to Prevent Static-Related Issues
- Inspection and Maintenance of Equipment: Regularly inspect all equipment, including spray guns, high-voltage generators, and grounding systems, to ensure they function correctly. Worn cables, loose connections, or damaged parts can all lead to accidental discharges.
- Implementing a Static Discharge Policy: Train all personnel to be aware of static buildup and discharge procedures. By incorporating routine static discharge actions into the workflow, such as grounding tools and themselves regularly, operators can mitigate unexpected shocks.
Conclusion
High-voltage electrostatic powder coating offers an effective and efficient way to apply coatings in manufacturing. However, it’s essential to address the safety risks associated with high-voltage static. By choosing the right equipment, setting safe voltage and current levels, ensuring proper grounding, and maintaining safe distances, operators can significantly reduce the risks of static-related accidents. Regular inspections and a focus on static discharge practices will ensure a safer work environment. For companies focused on safe, efficient powder coating applications, investing in these practices is a small price to pay for improved safety and peace of mind.
